Corning® Gorilla® Glass
Abrisa Technologies is a Corning-authorized U.S. finisher of Corning® Gorilla® Glass 3
Abrisa Technologies custom fabricates and provides optical coatings on Corning® Gorilla® Glass 3, a strengthened alkali-aluminosilicate thin sheet glass that is better able to survive common, real-world events that can cause glass failure. Tough Gorilla Glass 3 helps prevent the deep scratches that can cause glass to break, enabling improved damage resistance.
Gorilla Glass Features
- The superior composition of Gorilla Glass allows for a deeper layer of chemical strengthening than is possible with most other chemically strengthened glasses, making it extremely durable and damage resistant
- Abrisa Technologies can strengthen, fabricate, screen print and optically coat Gorilla Glass
- Abrisa Technologies can apply anti-reflection optical coatings, ITO coatings and Oleophobic coatings on Gorilla Glass
- Gorilla Glass 3 is uniquely formulated as a high damage resistant glass providing:
- Up to 4x improvement in scratch resistance when compared to competitive aluminosilicate glasses
- High retained strength after use
- High resistance to scratches and sharp contact damage
- Superior surface quality
Gorilla Glass Applications
- Ideal protective cover for electronic displays in:
- Smartphones
- Laptop and tablet computer screens
- Mobile devices
- Touchscreen devices
- Optical components
- High strength glass articles
- Protective cover glass
- Handheld devices
- Avionics and defense
- Instrumentation
- Ruggedized display
- Smart home devices
- Cameras
Knoop Visual Scratch Test
Scratches are less visible on Gorilla Glass 3 compared to competitive Al-Si when using our Knoop Diamond Scratch Test (after Ion Exchange).
Competitive Al-Si (4 Newton Load)
500µm
Gorilla Glass 3 (7 Newton Load)
500µm
Gorilla Glass Thicknesses
- 0.4 mm
- 0.55 mm
- 0.8 mm
- 1.1 mm
- 1.5 mm
- 2.0 mm
Gorilla Glass Chemical Strengthening
Gorilla Glass Properties
Gorilla Glass Viscosity
Gorilla Glass Optical Properties
*Core index is used for FSM-based measurements since it is unaffected by ion-exchange conditions.
Gorilla Glass Chemical Durability
Durability is measured via weight loss per surface area after immersion in the solvents shown below. Values are highly dependent upon actual testing conditions. Data reported is for Gorilla Glass 3 with NDR™.
Gorilla Glass Electrical Properties
Terminated coaxial line similar to that outlined in NIST Technical Notes 1520 and 1355-R.

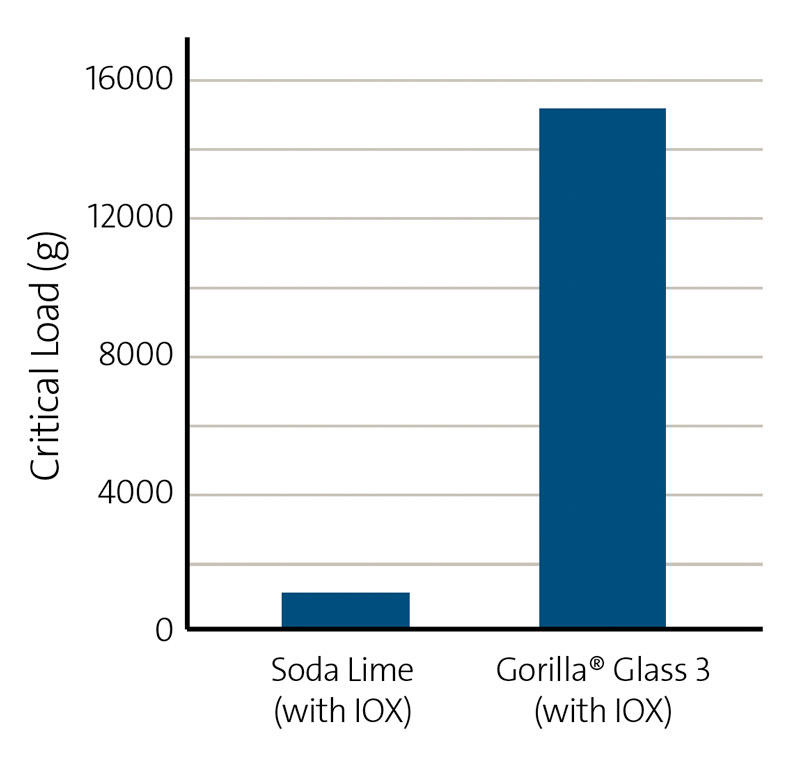

Damage Resistance Performance
It takes more load to initiate radial cracks in Gorilla® Glass 3 (with IOX) when compared to soda lime glass (with IOX).
